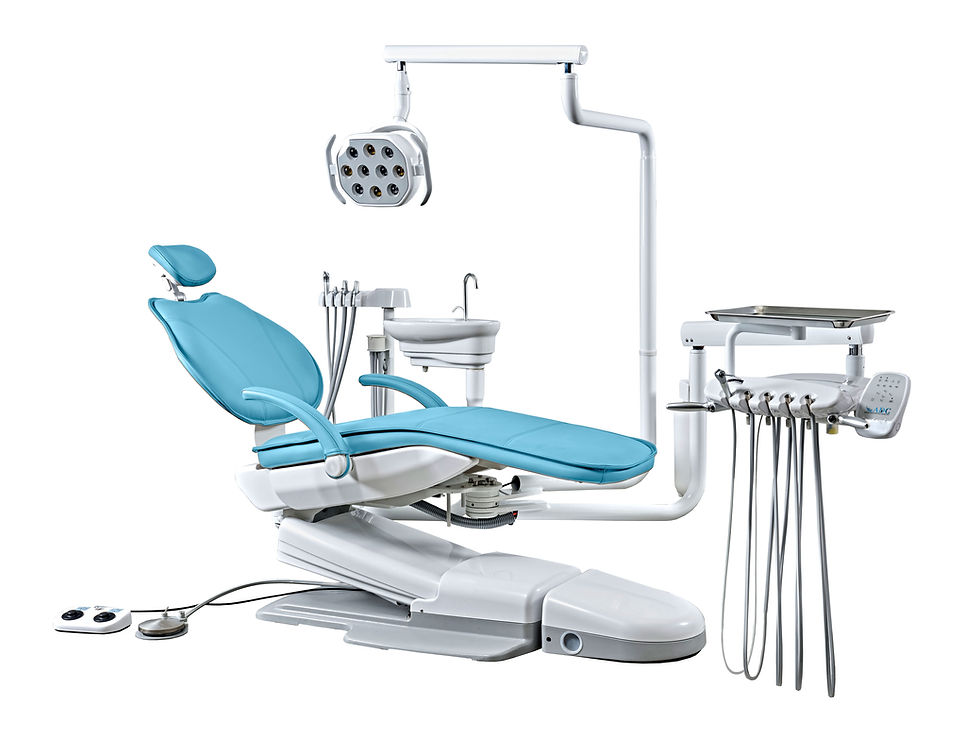

ADC Elite Swing Mount - Electric

Technical Specifications

Chair Type: Fully Electric Motor Driven Chair
Power: 115V (+-10%), 50Hz, 5A (220V available as special order)
Air Supply: 80 psi max (clean, dry)
Water Supply: 40 psi
Vacuum: Centralized
Drain: Gravity drain (can convert to vacuum drain)
Maximum Weight Capacity: 450 lbs

Unit Features

Delivery Mount: Swing Mount (Radius/Ambidextrous) – can switch between left-hand and right-hand configurations by the practitioner
Handpieces Tubing: 4 holes (4 pieces)
3-Way Syringe (Doctor's Tray): 1 piece
3-Way Syringe (Assistant): 1 piece
Water System: Single Bottle System
Cuspidor Bowl: Rotating porcelain (Standard)
Operating Light: 10 bulb 60K LED sensor light with composite shield, 3 light colors (Yellow, White, Natural)
Foot Controller: Multifunctional foot controller (1 piece)
High Suction (HVE): Standard (2 pieces)
Low Suction (Saliva Ejector): Standard (1 piece)
Dentist’s Touch Pad Control: Standard
Assistant’s Touch Pad Control: Standard
Armrest: Special design double movable armrest with matching upholstery
Headrest: Double articulating (suitable for adults and children, push-button)
Foot Pedal: Standard foot pedal
Auto Return: Standard
Upholstery: Soft leatherette
Water Heater System: Standard
City/Bottle Water Option: Standard
Memory Positions: 3 programmable memory positions
Doctor’s Stool: AD50V
AUX Water Connection for Cavitron: Standard

Additional Options (extra cost)

Built-in Scalar
Built-in Light Curing Unit
Assistant’s Stool: AD051V
Fiberoptic Tubing (for 2 handpieces, 6 holes)
Electric Motor HP System
Cavitron Tray
European Style Design (+$400)
Monitor Mount

Other Details

Certifications: FDA, CE, ISO approved
Warranty: 3 years manufacturer parts warranty (excludes normal wear and tear)
